貝朗雙頭線材折彎機主要功能和特點深受汽配商青睞

來源：東莞市貝朗自動化設備有限公司  發布時間：2018-12-06   點擊量：4868

貝朗自動化廠家研發生產推出的雙頭線材折彎機，是針對金屬線材進行2D、3D以及雙頭線材折彎成型的全自動數控設備。

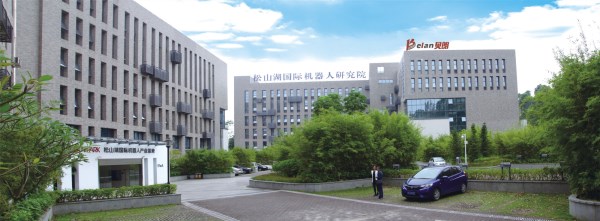

貝朗自動化外景

貝朗自動化外景

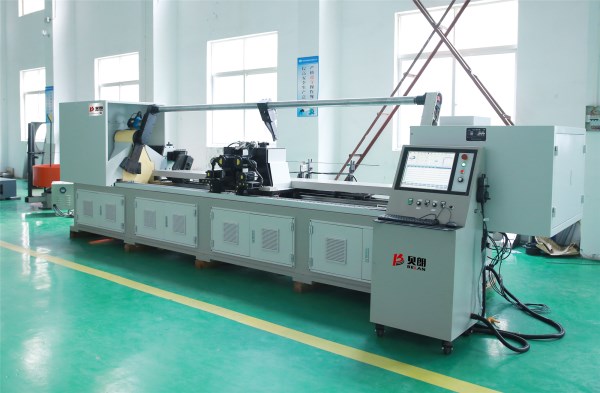

雙頭線材折彎機

 雙頭線材折彎機BL-2T-12800


◎雙頭線材折彎機BL-2T-12800主要功能和特點：

1、采用臺灣進口電腦控制系統和進口高速伺服電機；

2、電腦為中文、英文(可選)界面，易操作，定位準確，所有電機可同步或單獨運行；

3、設有精度檢測跟蹤裝置，如有不合格的產品能夠自動停機；

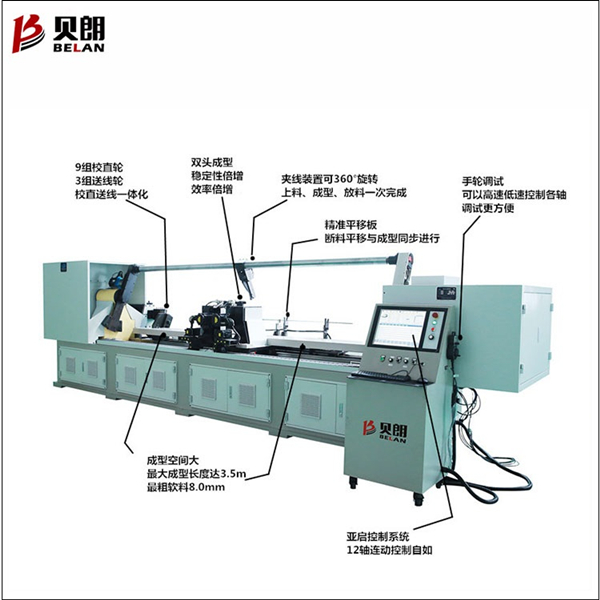

雙頭線材折彎機示意圖

雙頭線材折彎機示意圖

4、根據熒光屏上的工作情況，可以隨時對產品的外徑角度進行修正；

5、機械具備自動潤滑供油設計，保證設備的長時間運行；

6、當無線、斷線、纏線時有自動停機設計及線架自動加速功能，令生產更輕松；

7、適用于生產：主要針對汽車零部件行業生產汽車座椅后排鋼絲、汽車2.0的發泡鋼絲、汽車雙蛇形簧；


以及折長形的四方框和各種對稱的或者不對稱長件鋼絲產品。比傳統單頭設備做長件產品明顯速度快，穩定性高。

◎雙頭線材折彎機主要技術參數 ：


型號

（Model No.）

BL-2T-12400

BL-2T-12800

軸數

No. of Axis

12軸

12軸

加工線徑

input OD of Wire

硬料hard material

Φ2.0 ～ φ4.0mm

軟料soft material

Φ3.0 ～ φ6.0mm

硬料hard material

Φ3.0 ～ φ6.0mm

軟料soft material

Φ3.0 ～ φ8.0mm

送線輪數

No. of Feeding Round

3組

3組

送線軸伺服電機功率

Power of Wire Feeding Motor

5.5KW

3.5KW

(左/右)轉線電機功率

Power of Turning Motor

2.7KW

2.7KW

(左/右)折角電機功率

(left/right) Angle motor power

1.0KW

2.0KW

(左/右)平移電機功率

(left/right) shift motor power

1.5KW

2.7KW

(左/右)折角升降電機功率

Power of Angle Control Motor

1.0KW

1.0KW

平移電機功率

shift motor power

1.0KW

1.5KW

夾線旋轉功率

Rotary power of the clamp

1.0KW

2.0KW

切刀電機功率

Power of Wire Cuter Motor

1.0KW

1.0KW

  送線精度

Wire feeding accuracy

300mm±0.1

300mm±0.1

展開長度

Maximum expanded length

1000.0mm

3600.0mm

機器重量

Weight of Machine

3800KG

5500KG

輸入電源

Input Power

380V/50HZ/3PH

380V/50HZ/3PH

機器尺寸

（長度X寬度X高度）

Size of Machine

3000mm X 1500mm X 1600mm

8000mm X 1500mm X 1600mm























































◎下面圖表是雙頭線材折彎機配置詳情：


配件名稱 Part name

品牌產地 Brand origin

伺服電機、編碼器Servo motor, encoder

SANYO

直線滑軌 Straight rail

臺灣上銀 Taiwan

開關電源 Switching power supply

臺灣明緯 Taiwan

熒光屏 Screen

臺灣猶大 Taiwan

變頻器 Frequency converter

臺灣臺達 Taiwan

數控系統 Numerical control system

臺灣益圖 Taiwan

軸承 Bearing

日本NSK Japan NSK

減速機 Reducer

德國?？ㄌ?/span>/臺灣品宏 Germany/Taiwan

機座材質 Base material

A3鋼料 A3 Steel

鍵盤 keyboard

羅技 Luoji

電腦主板 Motherboard

臺灣 Taiwan

滾珠絲桿 Ball screw rod

臺灣上銀 Taiwan


好機械，貝朗造!貝朗自動化線材折彎機廠家，傾情研發生產推出的線材折彎機系列設備，為汽車零配件、五金、家具、貨架、園林工具、廚衛等行業提供金屬線材折彎成型解決方案，助力汽車零部件等行業轉型升級，如虎添翼，快速發展，創造更大的價值。




更多詳情歡迎瀏覽貝朗自動化網站：http://www.wsyaqi.com/product40/product114.html
